Cooling Tower Parts: A Complete Identification Guide

Proper identification of cooling tower parts remains critical for maintenance, performance optimization, and the prevention of costly system failures. These parts include essential components like fan blades, drift eliminators, nozzles, and basin parts. They all work together to ensure efficient heat rejection and reliable water circulation.

When operators understand each part and its function, they can diagnose problems more quickly and improve overall system efficiency. Selecting the correct OEM (Original Equipment Manufacturer) cooling tower components ensures proper compatibility and long-lasting performance. Using the right replacement parts also helps extend the lifespan of the entire cooling tower system.

Why Correct Identification of Cooling Tower Parts Matters

Misidentifying components often leads to incorrect maintenance decisions and extensive system downtime. Operators must know exactly which part they are looking at to perform adequate repairs. Recognizing the correct components provides several direct operational benefits.

This simple knowledge transforms how maintenance teams approach daily inspections. You can expect specific improvements when you correctly identify components:

• Faster Troubleshooting: Quickly and accurately diagnose issues during unexpected breakdowns to minimize downtime.
• Cost-Effective Repairs: Avoid ordering the wrong parts to save both time and money.
• Streamlined Maintenance: Plan and execute seasonal shutdowns more efficiently with precise knowledge of each component's needs.

In industrial systems, incorrect identification leads to incorrect repair.

Cooling Tower System Overview (Where Each Part Fits)

Before identifying individual components, operators must understand how the system works as a whole. The process follows a specific cycle that relies on sequential interactions. Knowing this flow provides crucial context for correctly identifying each part.

This functional map helps you locate components based on their active role in the cooling process. The standard heat exchange process follows these specific stages:

1. Hot Water Distribution: The cycle begins when hot water from your industrial process is pumped into the tower and evenly distributed across the top through a series of headers.
2. Heat Exchange: Gravity pulls the water down over the fill media. This large surface area allows the water to mix with air, transferring heat from the water to the air through evaporation.
3. Water Collection: Now cooled, the water collects in a basin at the base of the tower, ready to be pumped back to your equipment.
4. Airflow and Evaporation: Fans pull or push air through the tower, accelerating evaporation and carrying the captured heat out into the atmosphere.

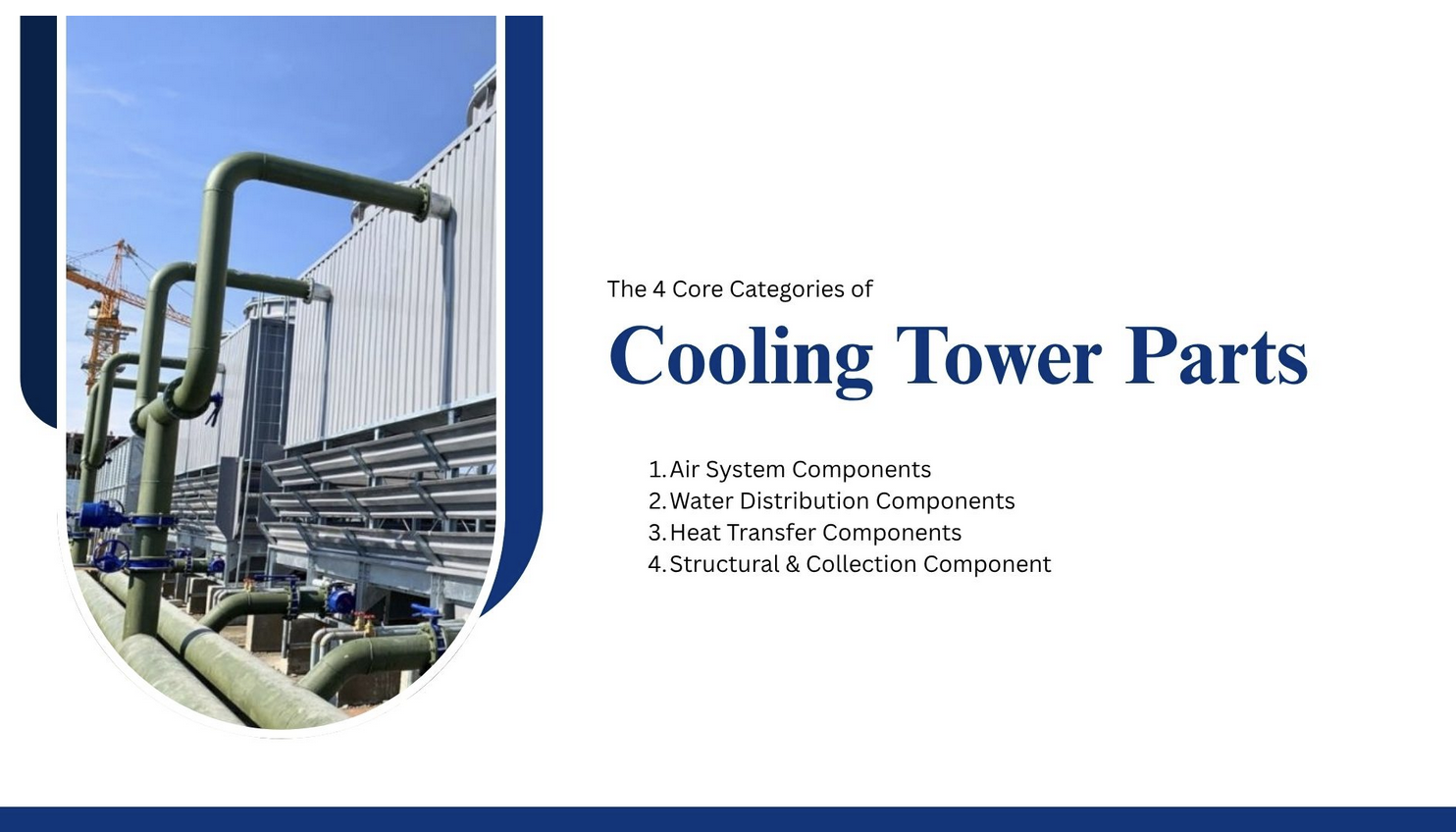

The 4 Core Categories of Cooling Tower Parts

Grouping parts by function improves understanding and simplifies identification. Instead of listing parts randomly, this categorized approach creates a logical mental map. You will find it much easier to locate specific components when you know their functional family.

1. Air System Components

The air system drives the evaporative cooling process by moving massive volumes of air. Without proper airflow, the system cannot reject heat efficiently. Look for these specific components at the top or sides of the structure:

• Fan blades that draw or push air through the unit
• Fan stacks that guide the air safely out of the tower
• Motors that provide the necessary rotational power

2. Water Distribution Components

This category manages how hot water spreads across the cooling area. Efficient systems maximize the water's surface area to improve heat transfer. You will locate these parts between the main water inlet and the cooling media:

• Spray nozzles that break water into small droplets
• Piping that transports the water across the internal area
• Headers that connect the main supply to the distribution pipes

3. Heat Transfer Components

Heat-transfer parts facilitate the exchange of thermal energy. They maximize the contact time between the air and the water. These internal parts sit directly in the middle section of the tower:

• Fill the media that increases the surface area for water flow
• Drift eliminators that capture escaping water droplets

4. Structural and Collection Components

The structural elements hold the entire system together and safely contain the water. These parts endure constant exposure to harsh environmental conditions. You will find these critical elements forming the outer shell and the bottom section:

• Basins that collect the cold water before recirculation
• Casings that enclose the internal working components
• Support structures that bear the weight of the entire operating system

Visual Identification Guide for Key Cooling Tower Parts

Each part possesses unique physical and functional characteristics that help in visual identification. Operators can use these distinct traits to spot wear and tear during routine checks. Knowing what a healthy part looks like makes it easy to spot a failing one.

Cooling Tower Fan Blades

Fan blades are large rotating components located at the top of induced-draft towers. They take responsibility for generating the airflow required for evaporation. Manufacturers typically make these blades from fiberglass-reinforced plastic or aluminum.

Operators must watch for specific visual and operational red flags. These common issues indicate immediate fan blade problems:

• Imbalance is causing the entire fan deck to shake
• Cracks are forming along the leading edge of the blade
• Vibration that damages the motor and gear reducer

Cooling Tower Drift Eliminator

You will find the drift eliminator located immediately above the fill media. It features a layered or honeycomb structure designed to force air to change direction. This part prevents water droplets from escaping into the atmosphere.

Failing to maintain this component leads to excessive water consumption and environmental issues. Look out for these common operational problems:

• Clogging from excessive mineral scale buildup
• Reduced efficiency leading to visible water plumes

Cooling Tower Nozzles

Cooling tower nozzles act as small spray outlets located in the water distribution system. They control the water flow and define the specific spray pattern over the fill media. A well-functioning nozzle ensures that water completely covers the heat-transfer area.

Poor water quality quickly degrades nozzle performance and system efficiency. Routine inspections usually reveal these common nozzle issues:

• Clogging caused by debris and biological growth
• Uneven spray patterns that leave dry spots on the fill media

Cooling Tower Basin Parts

The basin sits securely at the very bottom of the cooling tower structure. It collects the cooled water before the pumps send it back to the process. This area includes crucial management components like strainers, valves, and make-up water systems.

Because water constantly pools here, the basin requires frequent attention. Maintenance teams frequently encounter these specific basin issues:

• Leakage through cracks in the concrete or metal seams
• Sediment buildup that clogs the suction strainers

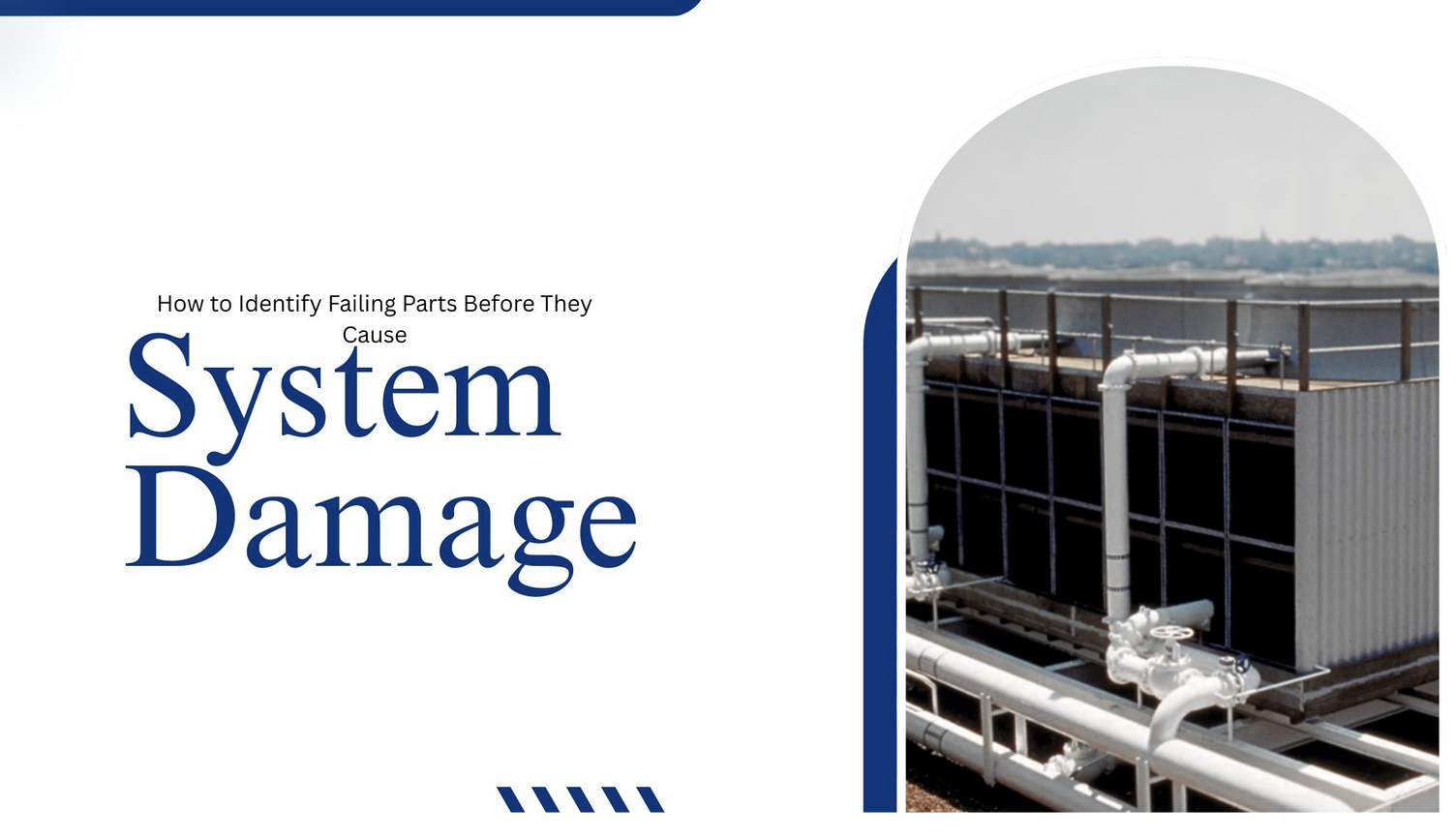

How to Identify Failing Parts Before They Cause System Damage

Early detection is key to preventing major catastrophic failures. Operators must use their senses to monitor the cooling tower. Noticing small changes in operation saves thousands of dollars in emergency repairs.

Connecting a physical symptom to a specific part streamlines the troubleshooting process. Watch and listen for these early warning signs:

• Unusual Vibration: This often indicates a problem with the fan or motor. Check for imbalances in the fan blades or issues with the motor bearings.
• Uneven Water Distribution: If you notice water isn't flowing evenly, it's a strong indicator of clogged or broken spray nozzles.
• Excessive Water Loss: Observing an unusually large amount of water splashing out or drifting away from the tower indicates a failure of the drift eliminators.

Selecting the Right Replacement Parts (Compatibility Matters)

Not all parts are interchangeable across different cooling tower brands or models. Selection must match the exact original system specifications to guarantee performance. Installing a generic part often reduces efficiency and voids the manufacturer's warranty.

Engineers must verify multiple technical parameters before finalizing any parts order. You must prioritize these specific criteria during part selection:

• Material Compatibility: Ensure the new part's material can withstand your facility's specific water chemistry to prevent corrosion and premature failure.
• Exact Specifications: Double-check that the replacement part's size and design match the original to ensure a perfect fit and optimal function.
• Operating Conditions: Confirm the part is rated for your system's specific operating temperatures and water flow rates to maintain efficiency and safety.
